Benefit of aluminium hung window

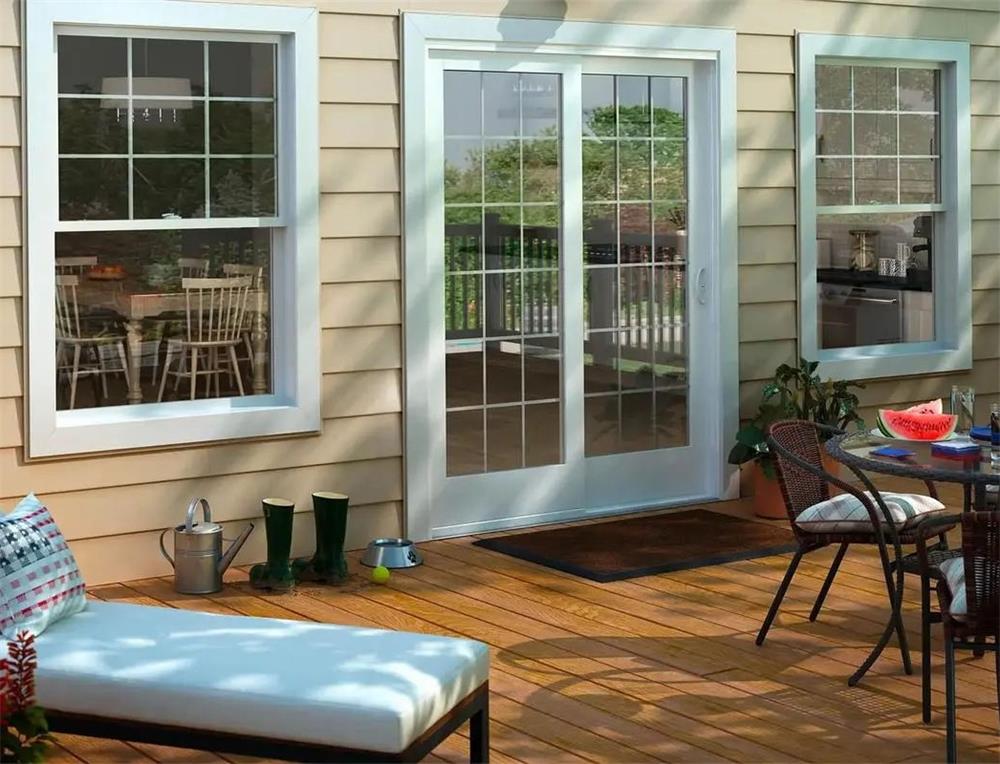

What’s aluminium hung window

Aluminium hung window is a aluminium framed window that is opened by pulling up and down. Because it is mainly popular in North America, it is also called American hung window,or vertical sliding window. In the international system, windows derived from European casement, sliding and other window types are collectively referred to as European windows. American sliding windows originated in the United States and are the inheritance, improvement and development of European doors and windows.

A hung window consists of a fixed window frame and inner and outer sashes that can slide up and down, and accessories. It can be classified into single hung window and double hung window. Single hung window means that the upper sash is directly fixed to the window frame, and only the lower sash can be pulled up and down. A single sliding window can achieve better airtightness and watertightness. A double hung window means that both the upper and lower sashes can be pulled up and down, and the choice of ventilation parts is more flexible, and disassembly is easier, which is convenient for maintenance.

The benefit of hung windows

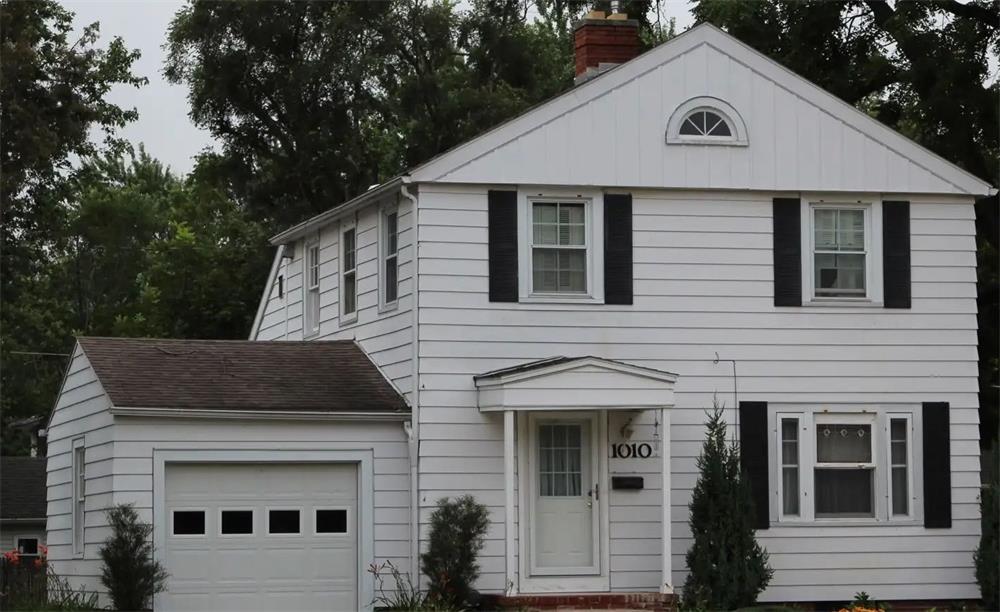

1. Safe and space-saving.

From a safety perspective, if you use awning windows or outward casement windows at home for a long time, you will always feel that they will fall down. If you live on a high floor, it is very dangerous. The hung windows can only be tilted inwards, so there is no danger of the windows falling down. Compared with traditional windows,especially inward casement windows,tilt&turn windows that account huge inroom space,hung windows can be pushed up and down, and do not take up space, so they can be seen in small places such as kitchens and bathrooms.

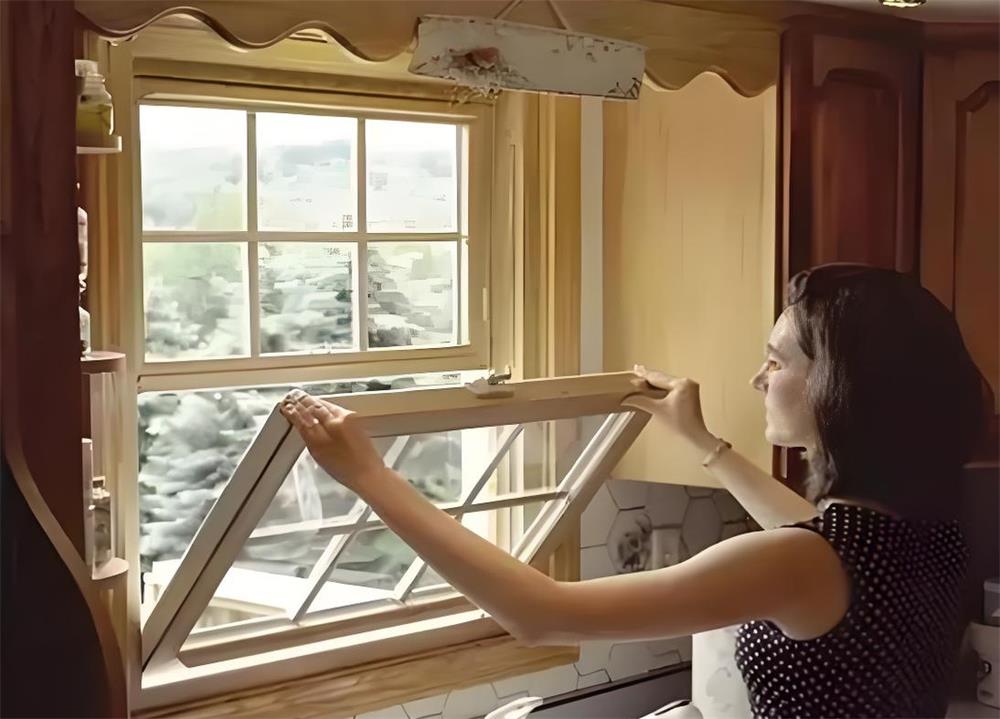

2. Easy to clean.

 Windows are very difficult to clean, and there are certain risks in cleaning the windows of high-rise residential buildings. Every year, we hear about the tragedy of people falling from buildings while cleaning windows at home. Even the left and right sliding windows are always difficult to clean, but the hung windows cleaning is much easier, more convenient and safer.

3. Good sealing performance .

Compared with sliding windows, the sealing performance of hung windows is better, it’s only second only to fixed windows and casement windows. The working principle of sliding windows is that the pulley at the bottom of the window slides back and forth on the slide rail of the window frame. Because of the smoothness of pushing and pulling, a gap needs to be left between the pulley and the slide rail, so it is not completely sealed.

 The sash in hung window is wrapped in the window frame and runs vertically up and down. Through multiple sealing of high-quality siliconized wool strips, the sash frame fits tightly around, and the sealing performance is significantly better than that of the sliding window.

4. Flexible ventilation

The hung windows can be suspended at will. If the top is fixed, the bottom can be used for ventilation; if the bottom is fixed, the top can slide. It is very flexible and can be freely selected according to different spaces.

5. Elegant appearance

It can have different line styles, and there will be no visual obstruction when it is turned on.

In North America, over 80% hung windows are made with PVC, PVC hung windows has good cost performance,relatively better thermal performance,while compared with thermal break aluminium hung windows, the shortage of PVC windows is very obvious,include:

1. PVC windows have low material strength and rigidity. Although they are reinforced by adding lining steel, their wind pressure resistance and watertightness are about two levels lower than those of aluminum hung windows.
2. ThePVC windows frame and sash is about 10% larger than that of aluminum windows. The field of vision and decorative effects are poor, which is not conducive to energy saving and consumption reduction of building lighting.
3. PVCwindows are easily deformed by heat and become brittle when cold. They have poor size and shape stability, and often need to use the rigidity of glass to prevent window frame deformation.

In order to prevent window frame deformation, windows fabricators should install glass in the factory before delivering windows to prevent deformation during storage, transportation, and installation.

1. PVC materials are always white color,which is not friendly to some customers that want to match the windows color with the building colors.

More info:Aluminium windows VS PVC windows

While thermal break aluminium hung windows solved these problem with thermal break aluminium, aluminium surface treatment can be colorful based on customers preference, aluminium is rigid and won’t deform after years, much bigger visual area, good watertightness, and more important, VIG windows improves the hung windows into next stage by using vacuum insulating glass.

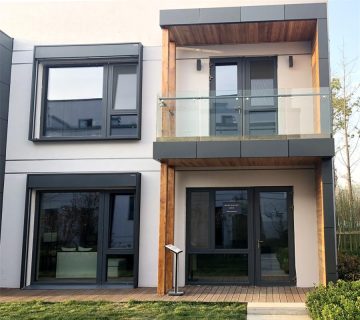

1. Vacuum insulating glassis the most energy efficient glass in the world,its thermal performance is just 15% of normal double glazing and 30% of low-E insulated glass, with the help of vacuum double glazing,the thermal performance of aluminium hung windows is improved to about 0.22.
2. The Caldwell balances ensure the most smooth hung windows and the longest lifetime.
3. As the windows frame,vacuum insulating glass are fabricated in China,the overall price is much lower than American aluminium windows.

VIG windows is trying to testing our aluminium hung windows based on AAMA/ NFRC standard to prove our quality and reliability ,welcome contact us for your next great energy efficient building.
